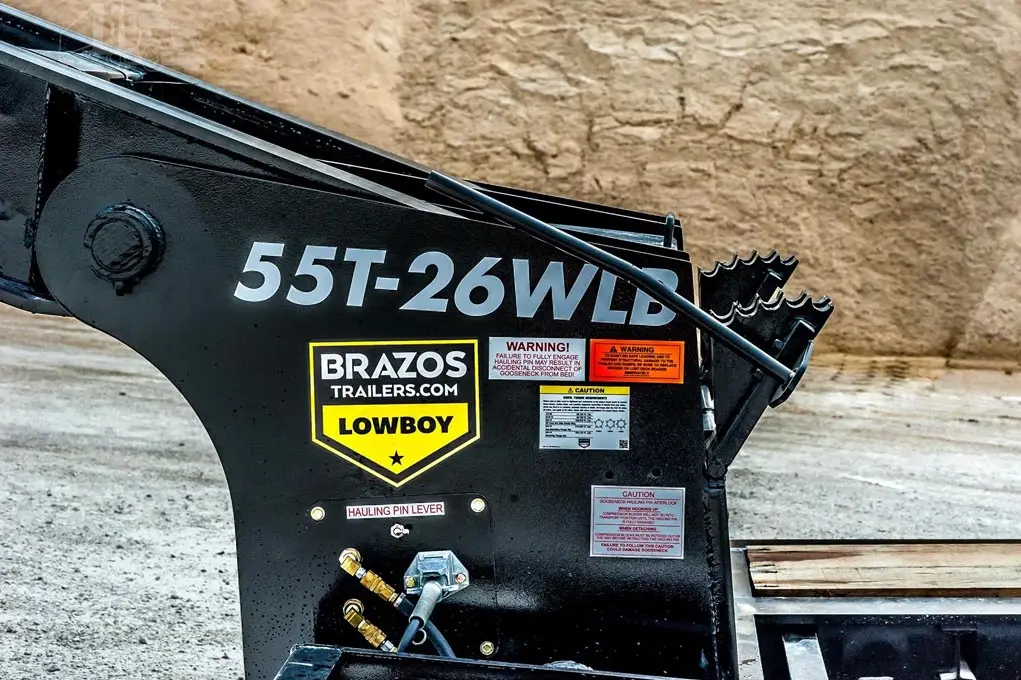

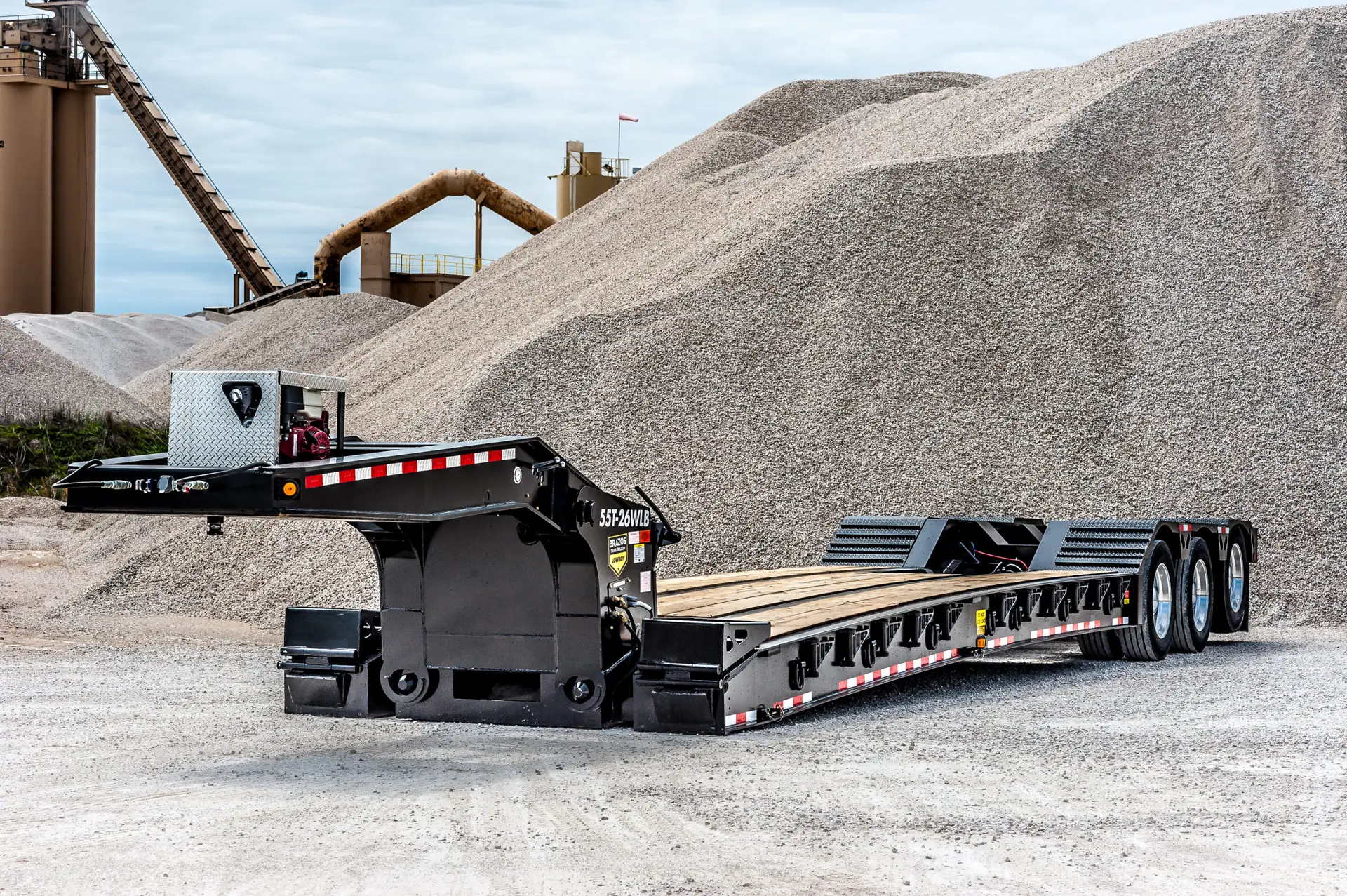

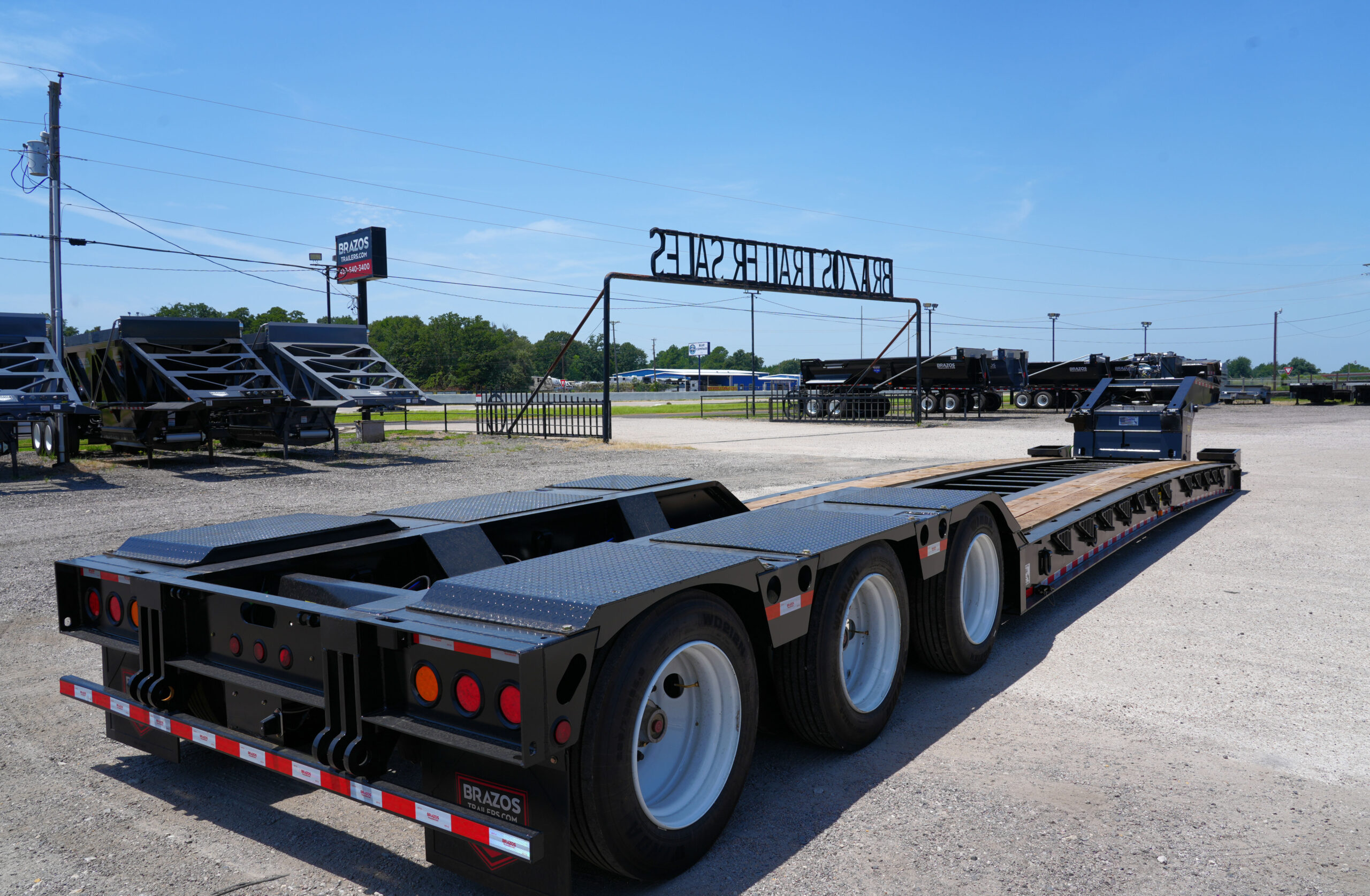

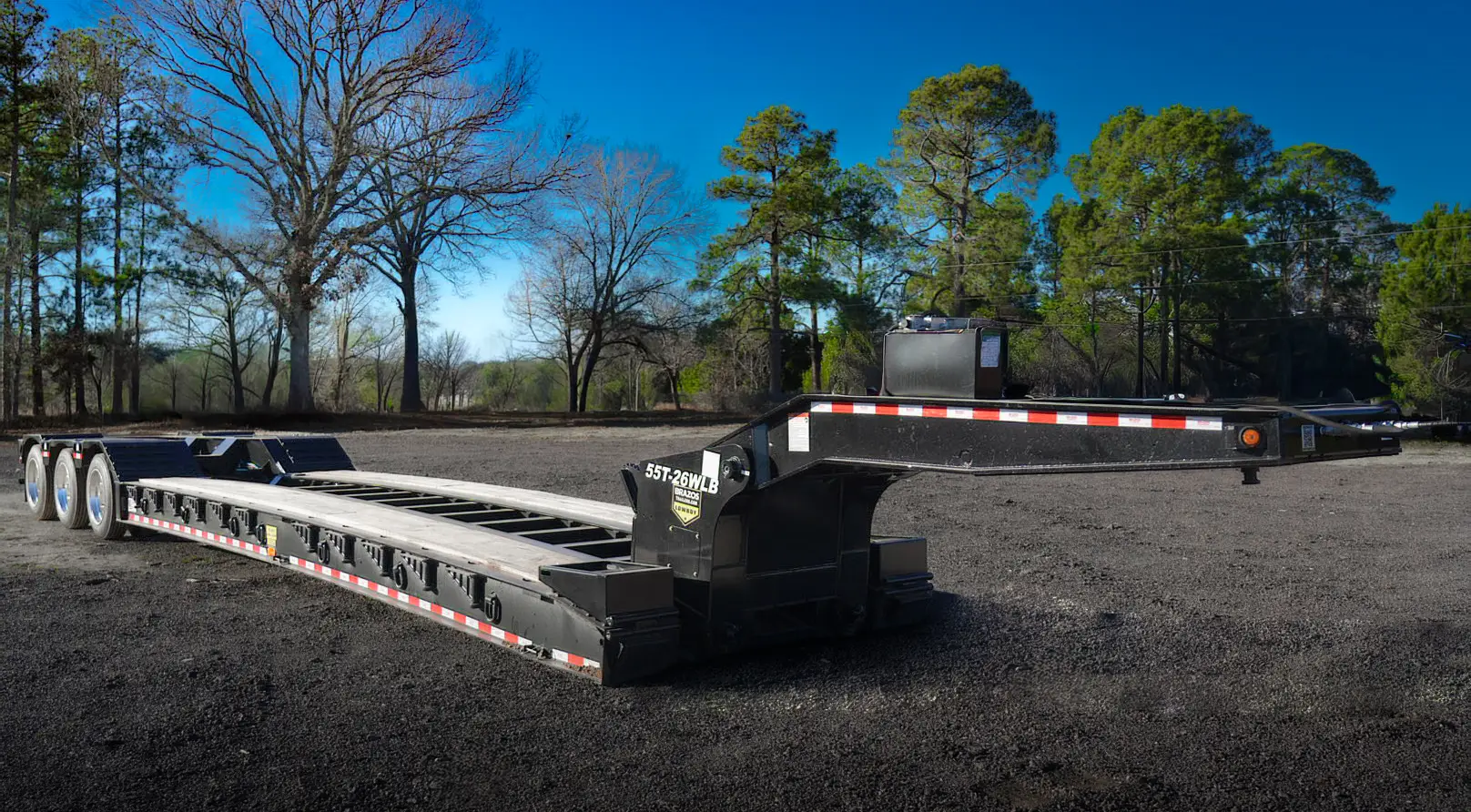

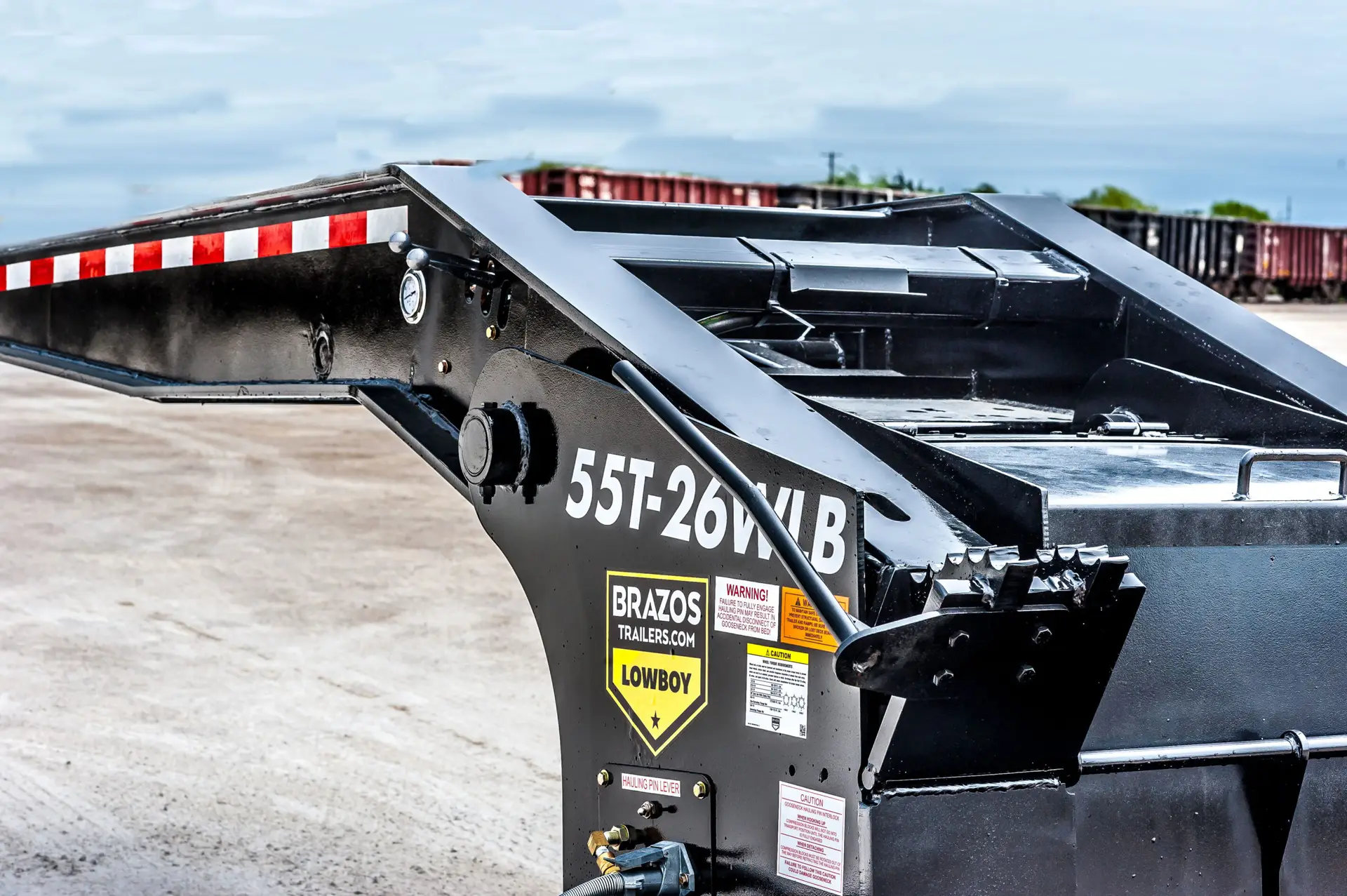

55 Ton Low Boy Trailer
Starting at $69,700
*Please note: Pictures shown may contain optional upgrades not included in base price. (stock photo)
Specifications
- Spec: 55 Ton (110,000 LBS) BRAZOS LOWBOY Trailer
- Overall Length 53′, Overall Width 102′
- Grade T-100 Flange and Web
- Cold Weather Molded wiring harness
- High Visibility LED lighting

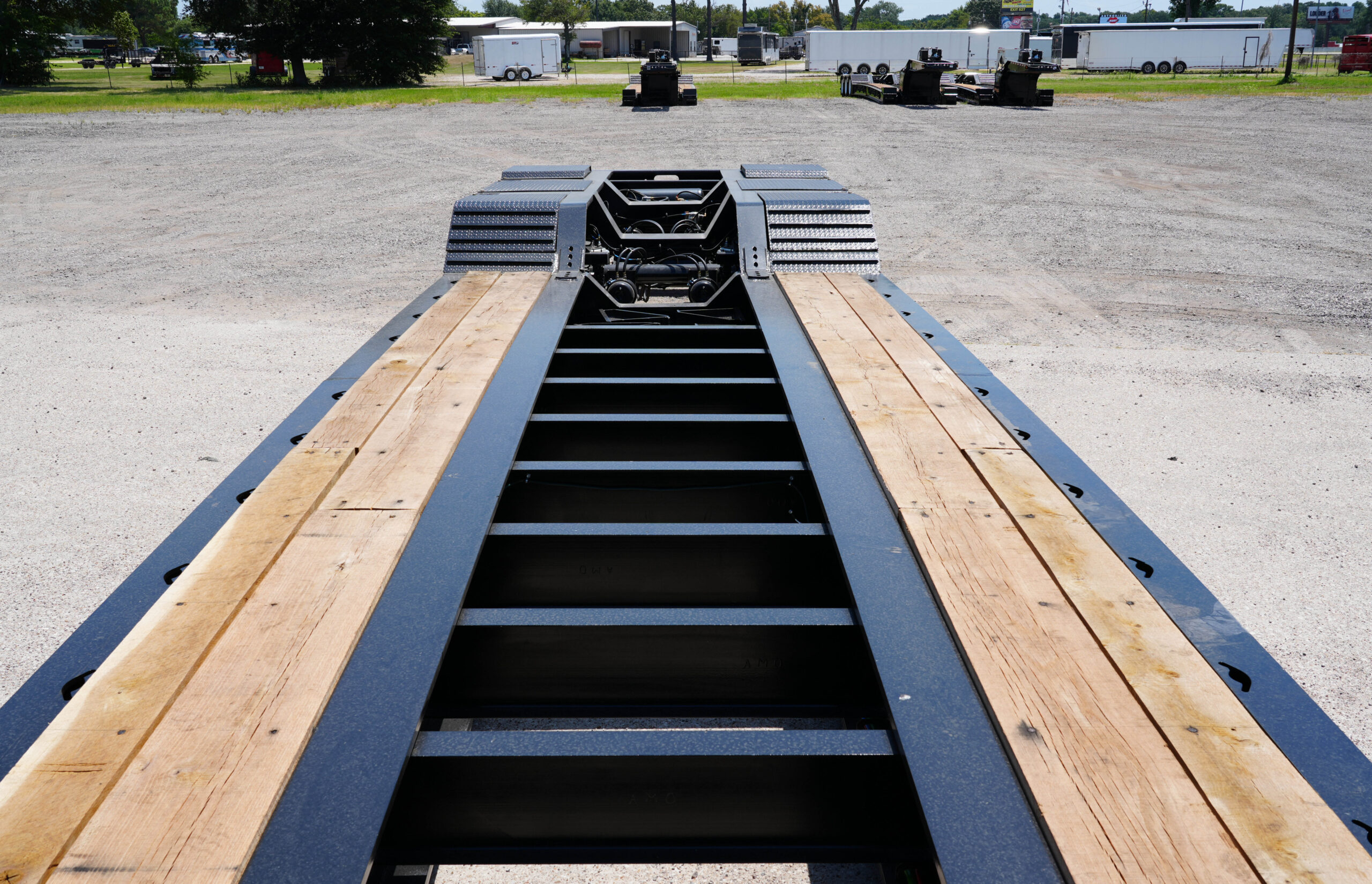

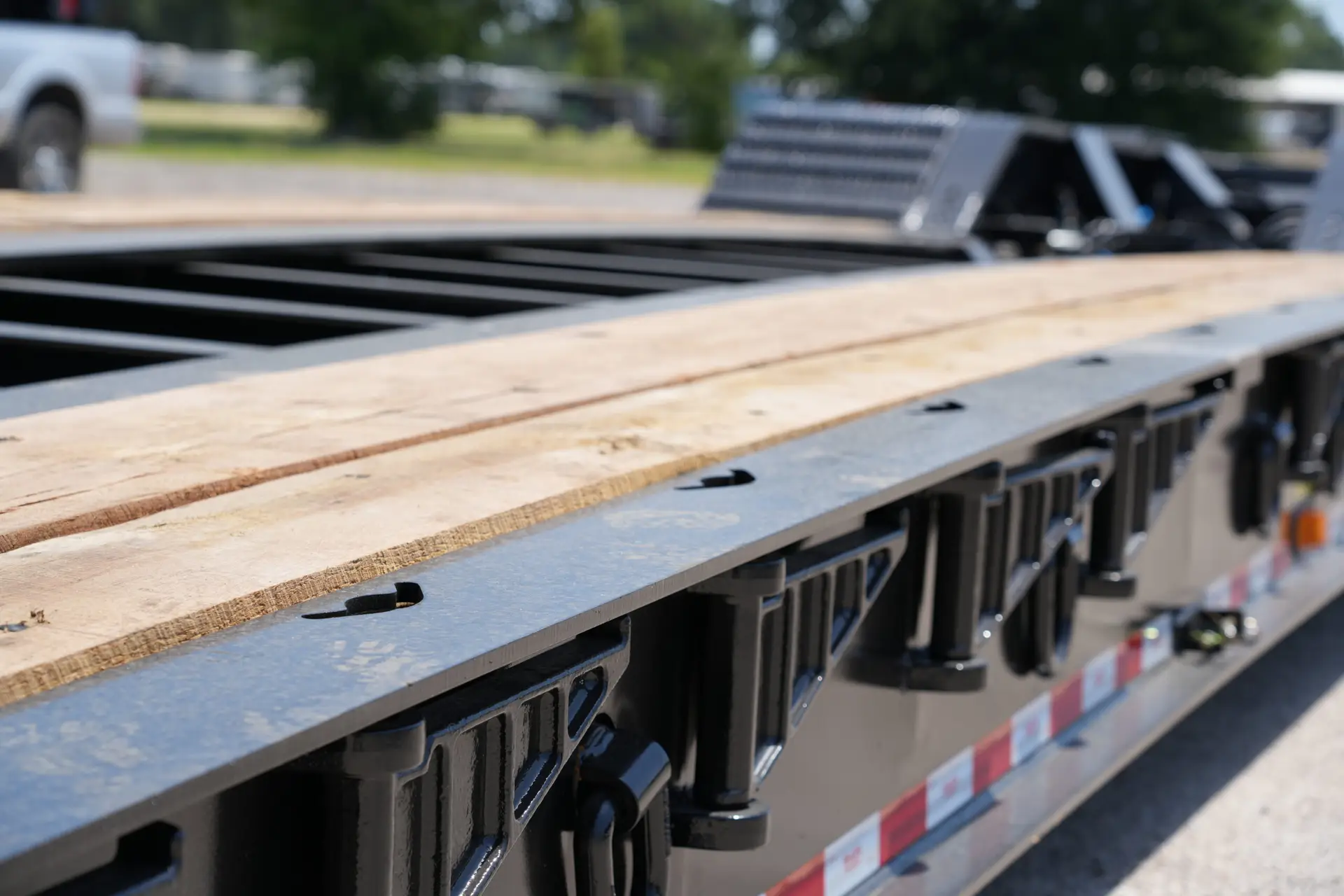

- 2.75″ Rough cut Oak flooring
- Dual King Pin position 110″ & 84 ” Swing Clearance
- Fold out outriggers
- (4) HD Pin able outriggers
- 54 1/2″ Axle spacing
- Concentrated load capacity of 50 Ton (100,000lbs) in a 12′ span
- 5 Position adjustable ride height

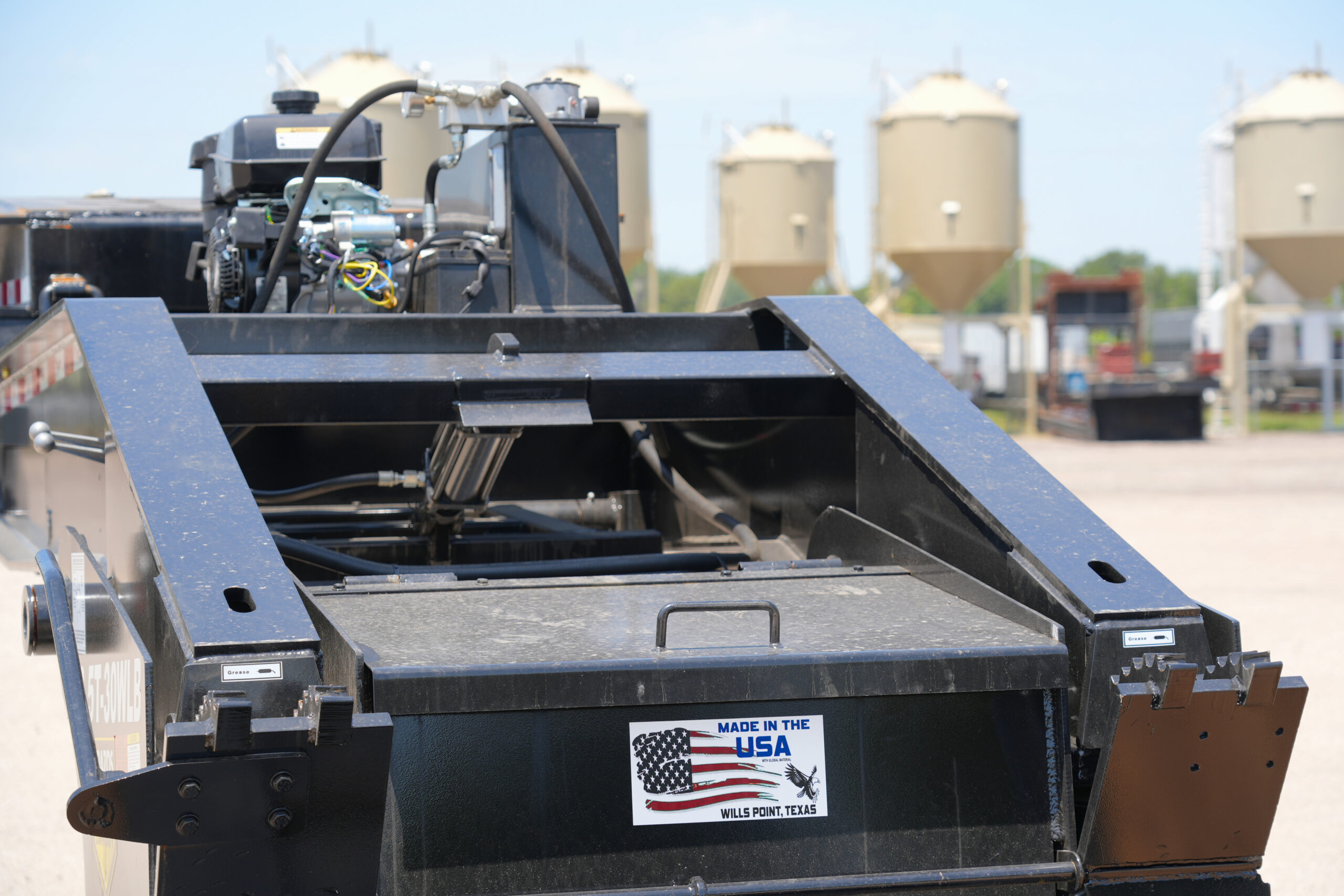

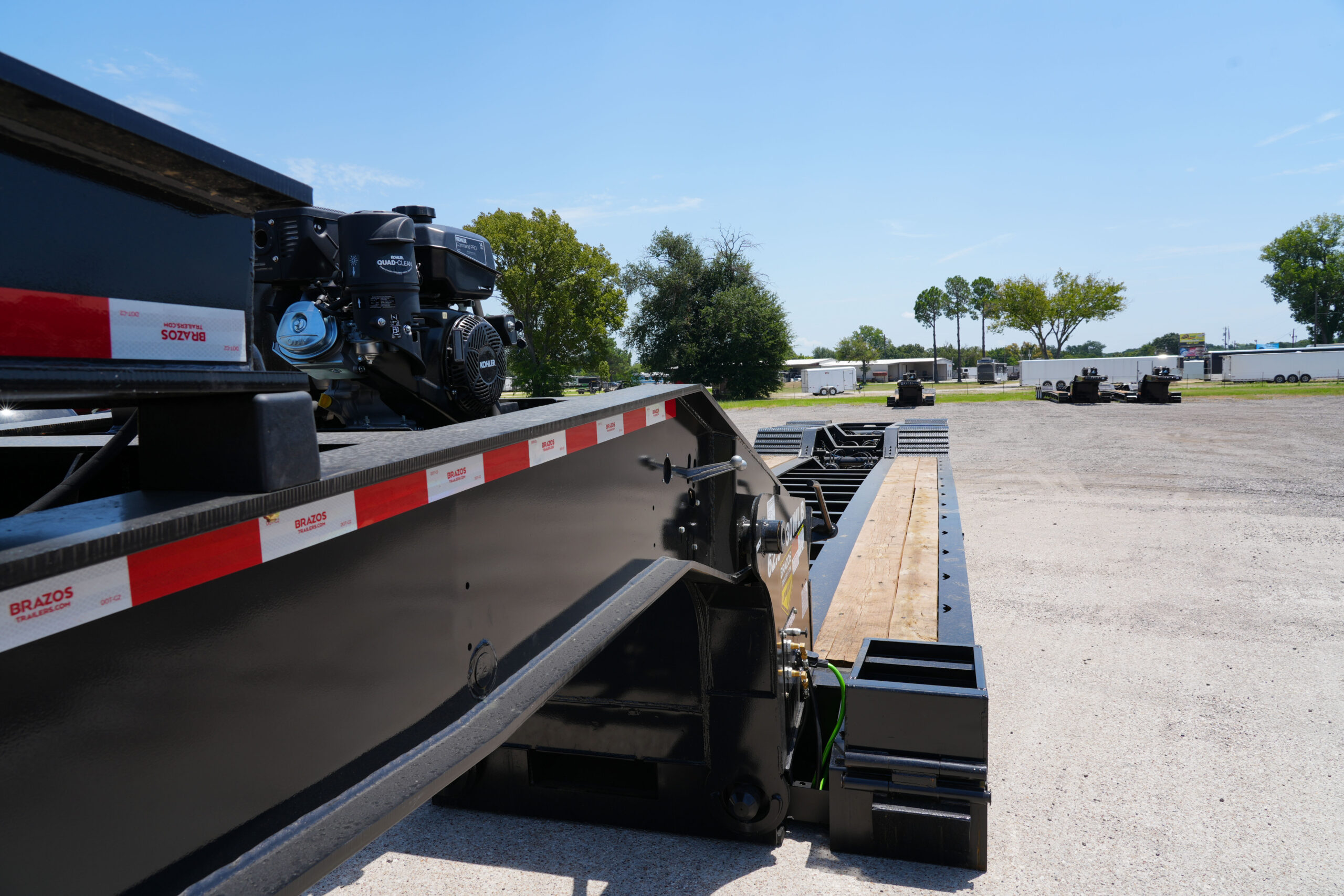

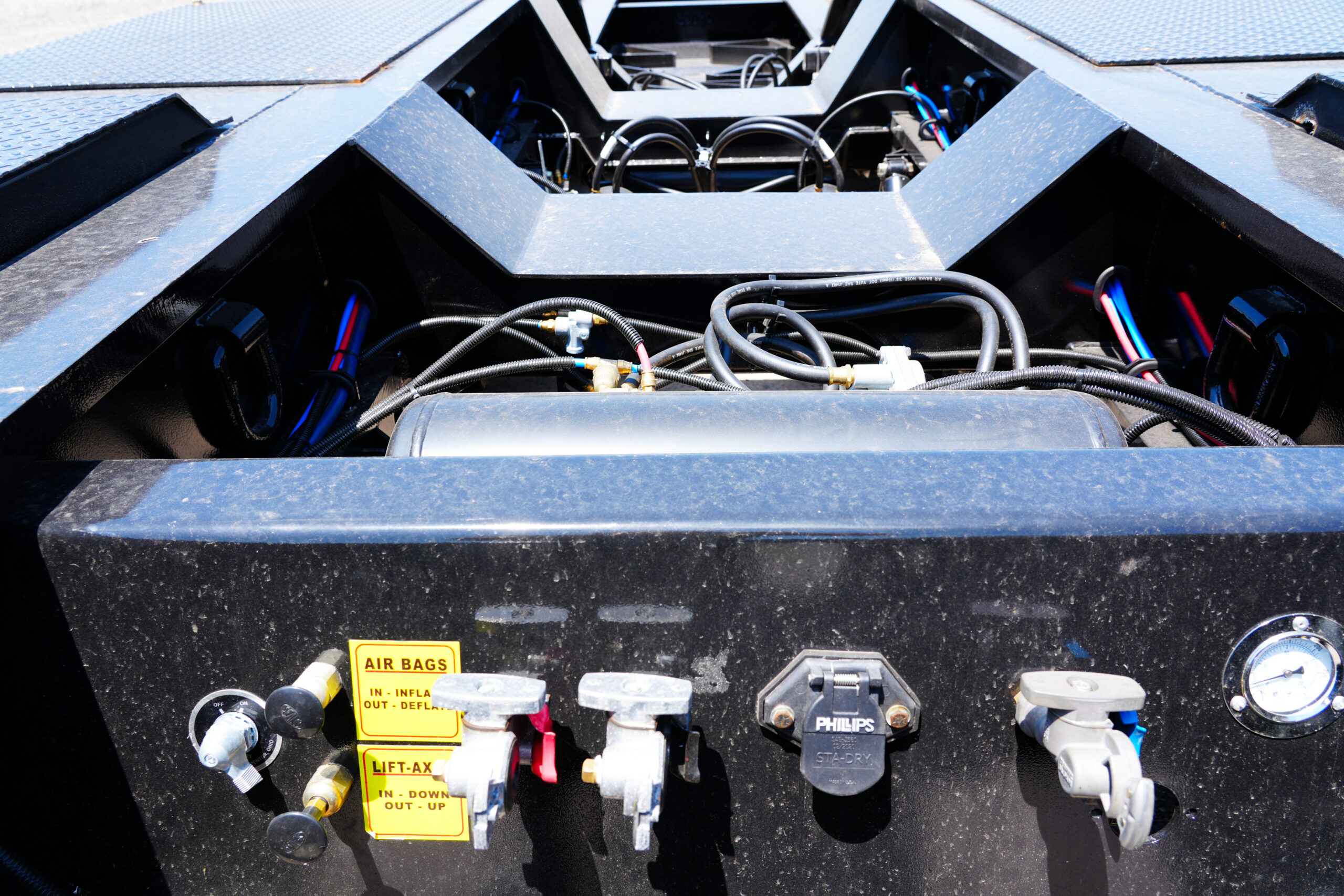

- Hydraulics plumbed to accept wet kit or pony motor
- Air operated locking pin

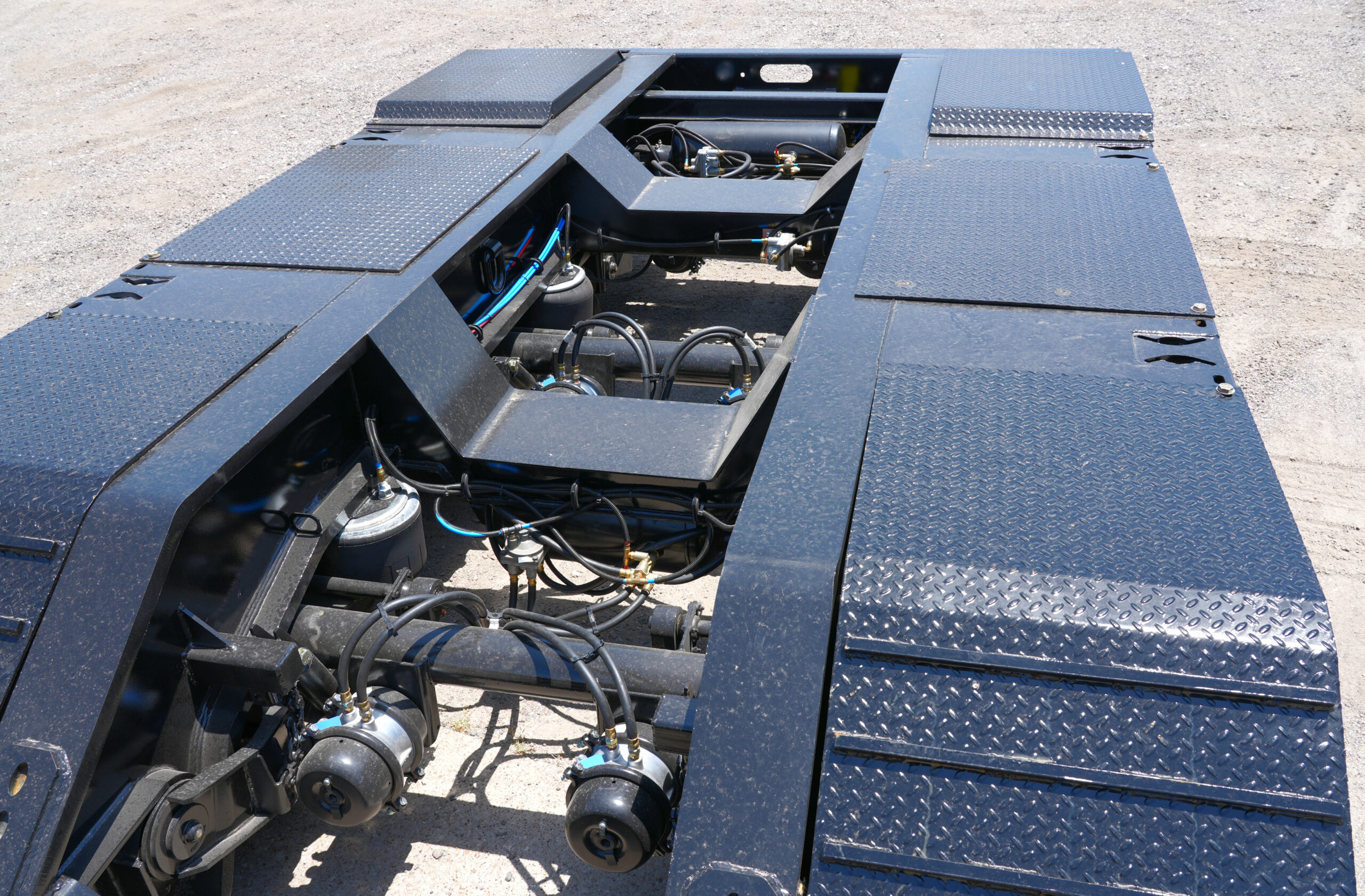

- 25,000 LB Air Ride with Dump valves
- (3) 25,000 LB axles with Limit CHAINS on all axles
- Hub Pilot Drums with 16.5″x7″ Brakes
- Standard 26″ Well
- 7″ low ground clearance
- Crossmembers on 12’’ Centers, Alternating 10” and 4” I beam
- (7) Rotating HD D-rings
- Recessed storage boxes front and rear with D-rings inside

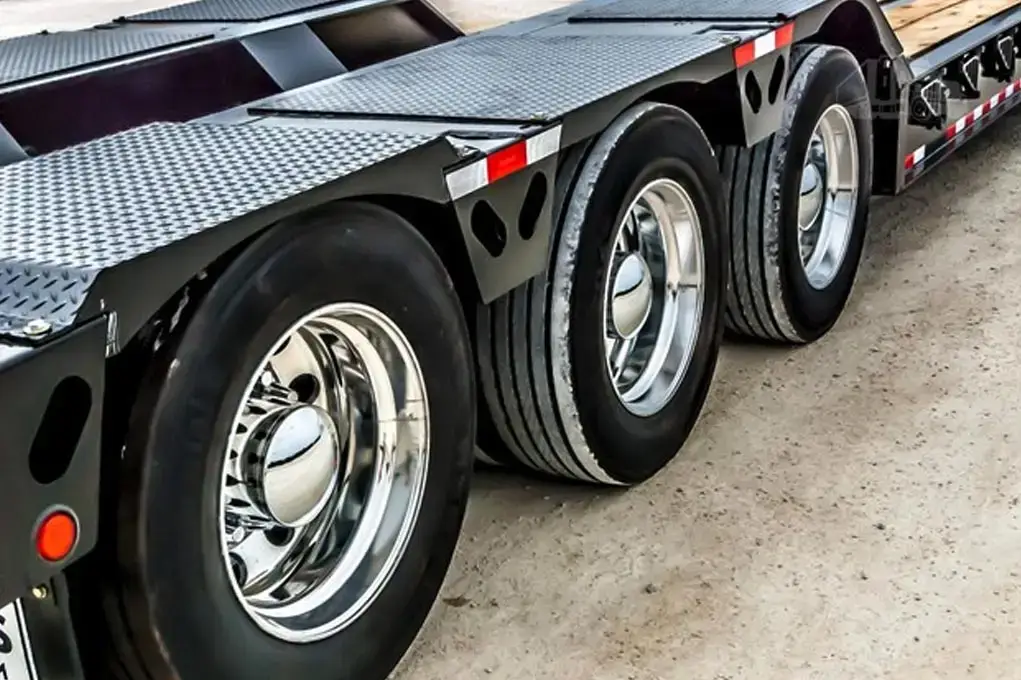

- 8.25″x22.5″ Steel Wheels
- 255/70/22.5 Tires
- Chain slots at rear fenders
- Flag holders built in rear bumper & front corners
- Open wheel with load bearing bolsters
- Rear transition at 31 deg slope
- Open rear trough design

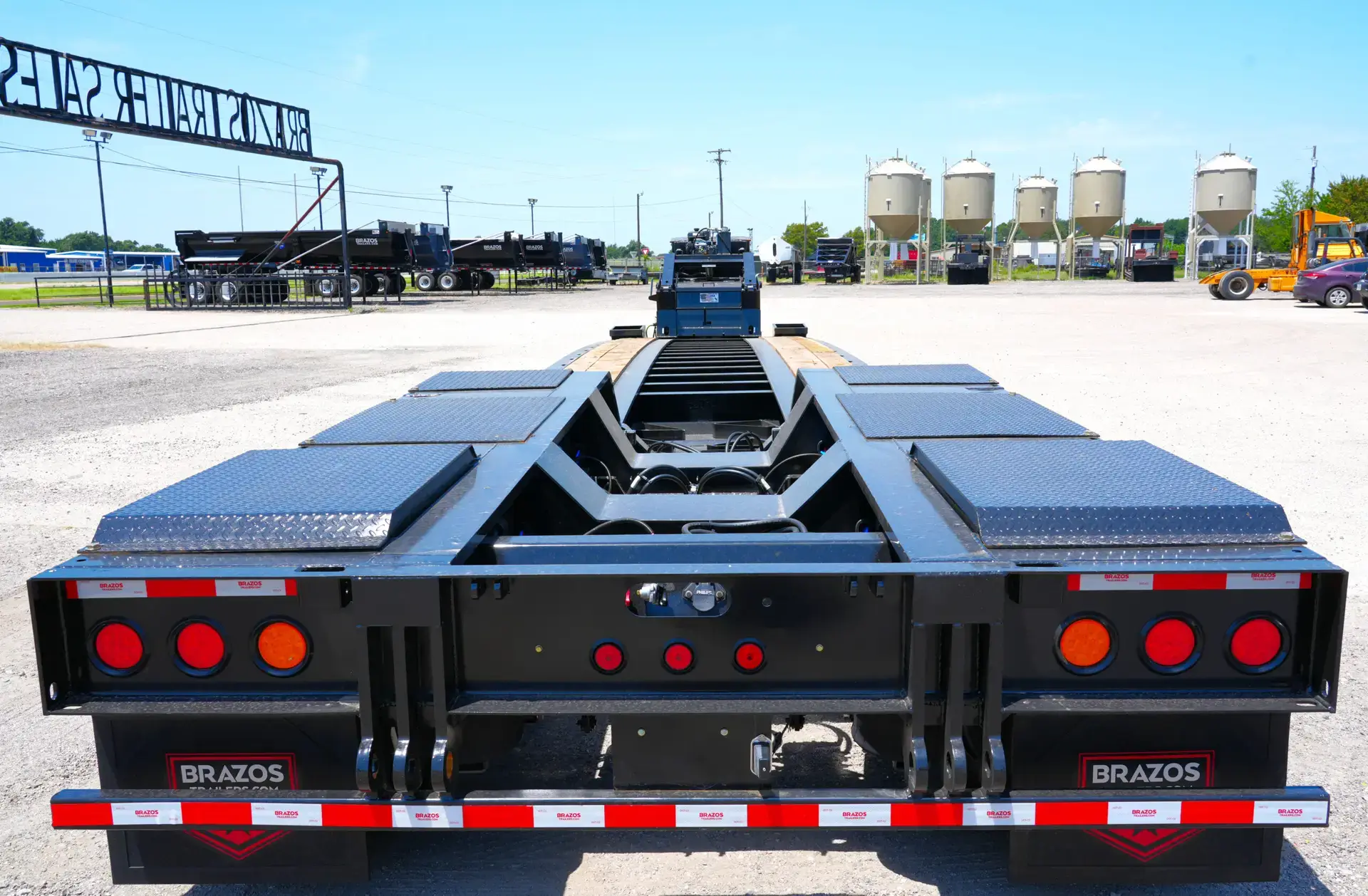

- Sign pockets in rear bumper
- 4th axle Compatible to accept single axle manual flip
*Add $1,500 to base price for Arizona location
Model Information
| Stock Number | 4190 |
| Year | 2026 |
| Manufacturer | Brazos |
| Model | 55 Ton Low Boy |
| Condition | New |
| Suspension | Air Ride |
| Well Length | 26 ft |
| Wheels | Steel |
| Number of Rear Axles | Tri |
| Axle Type | Fixed |
| Composition | Steel |
New & Used Inventory
Want to be the first to know about new and used inventory?
Owners Manual

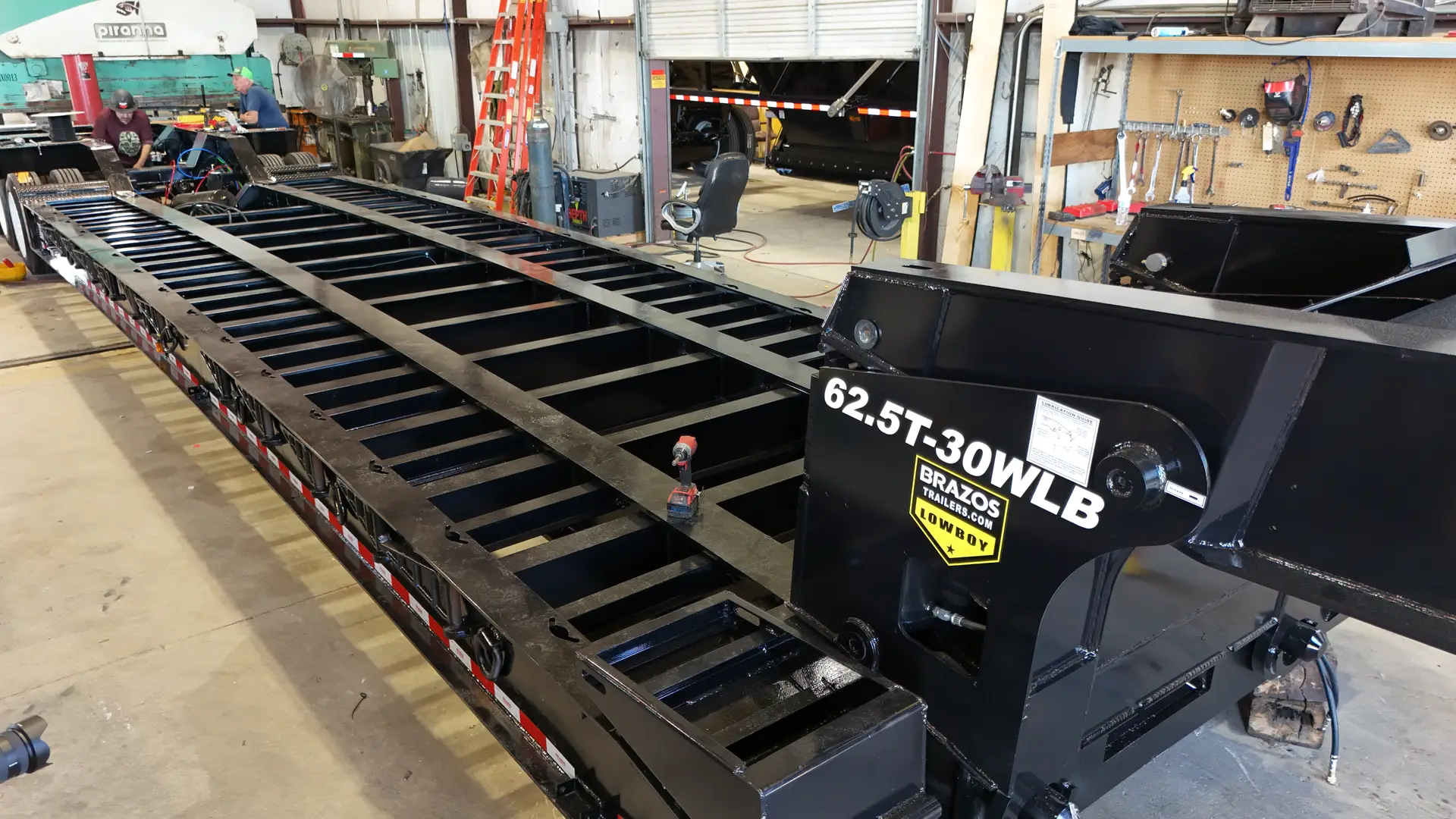

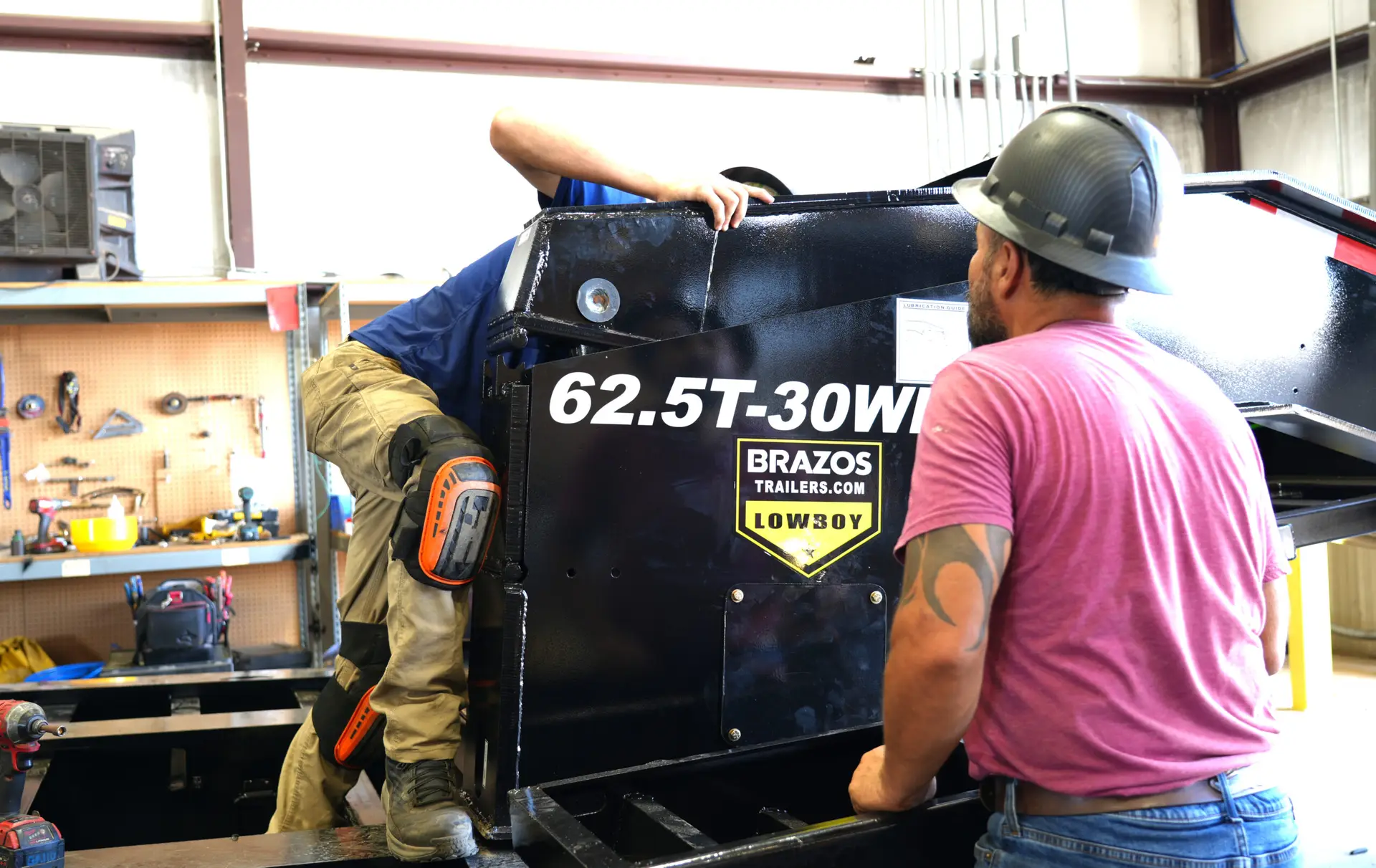

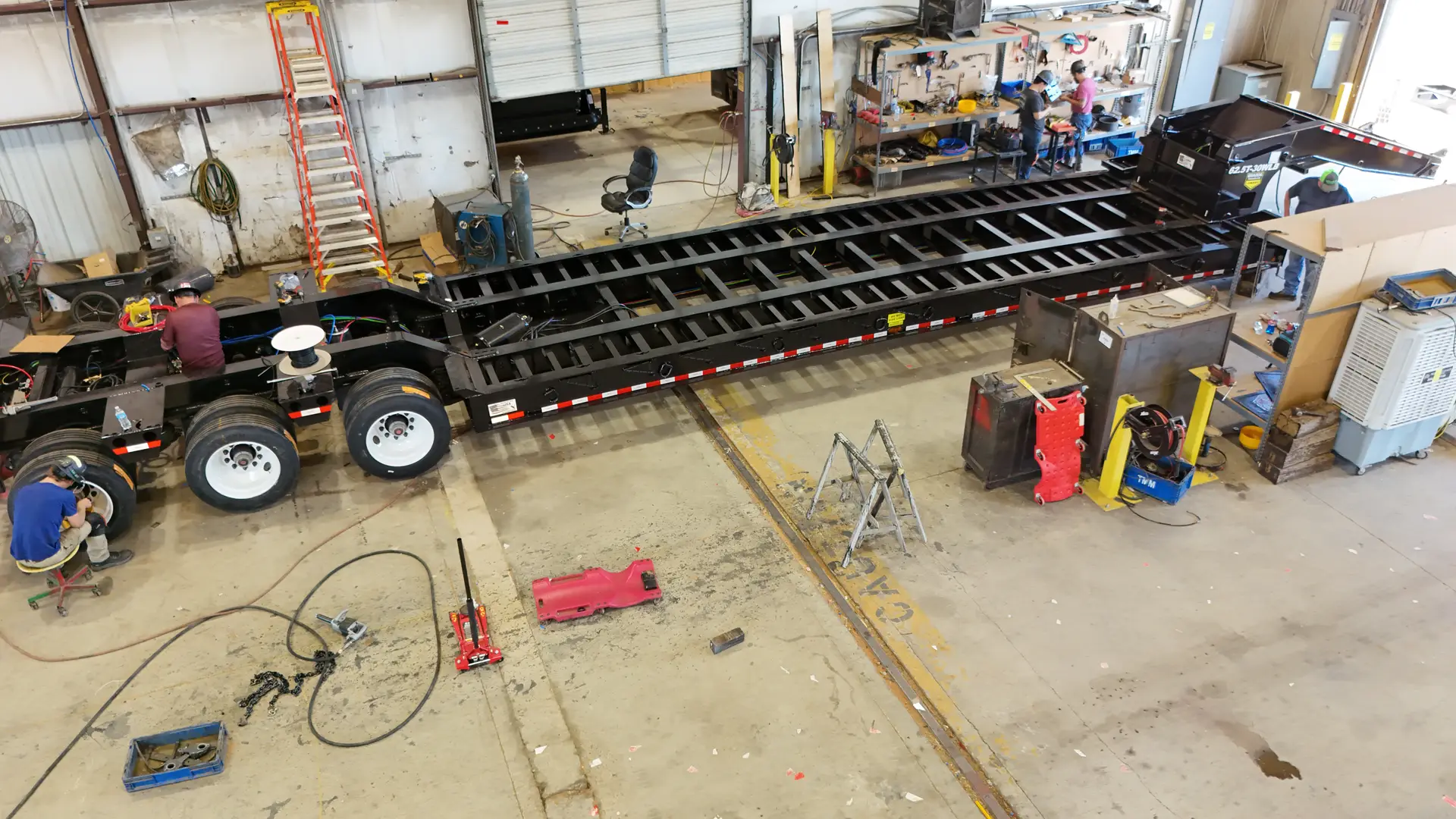

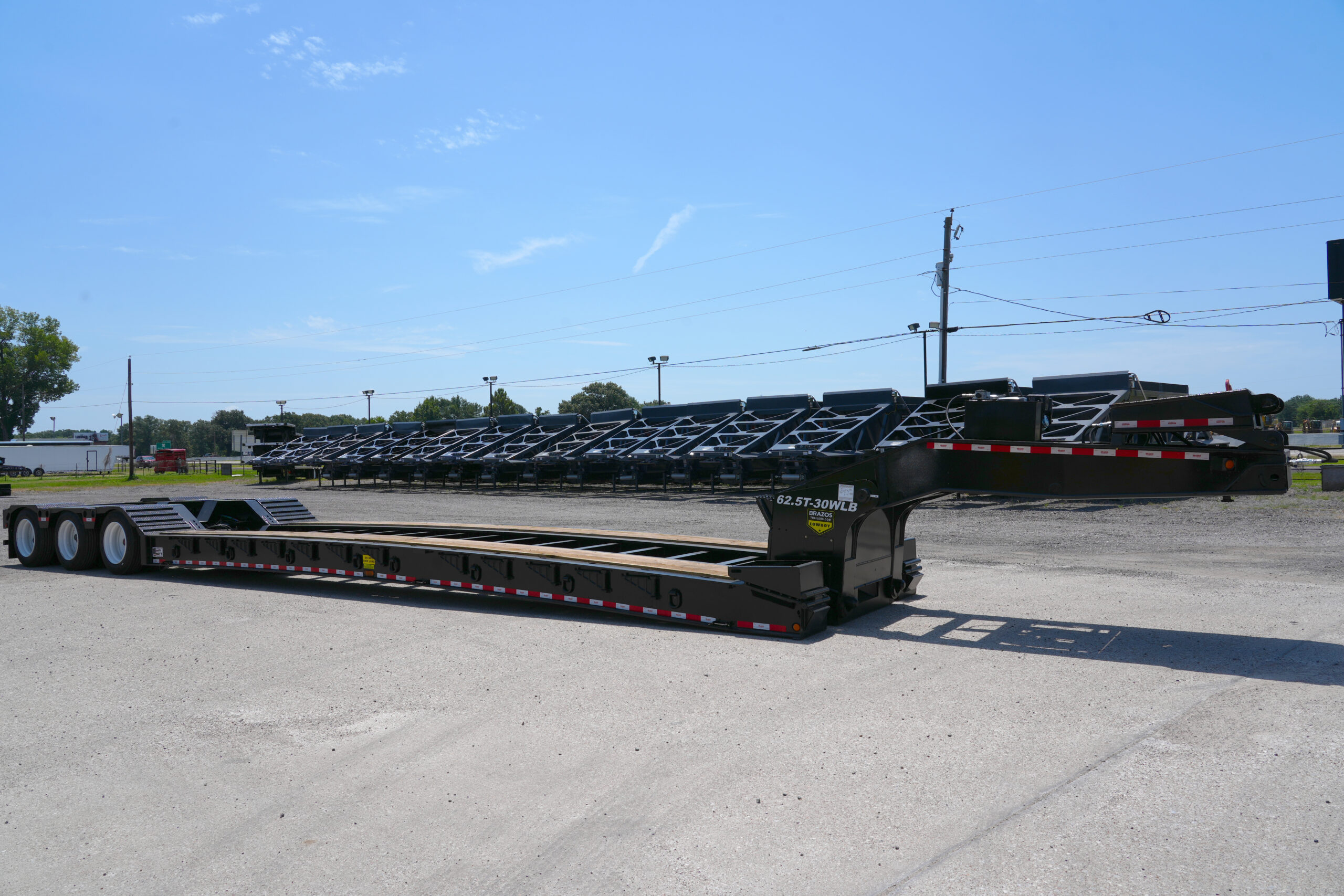

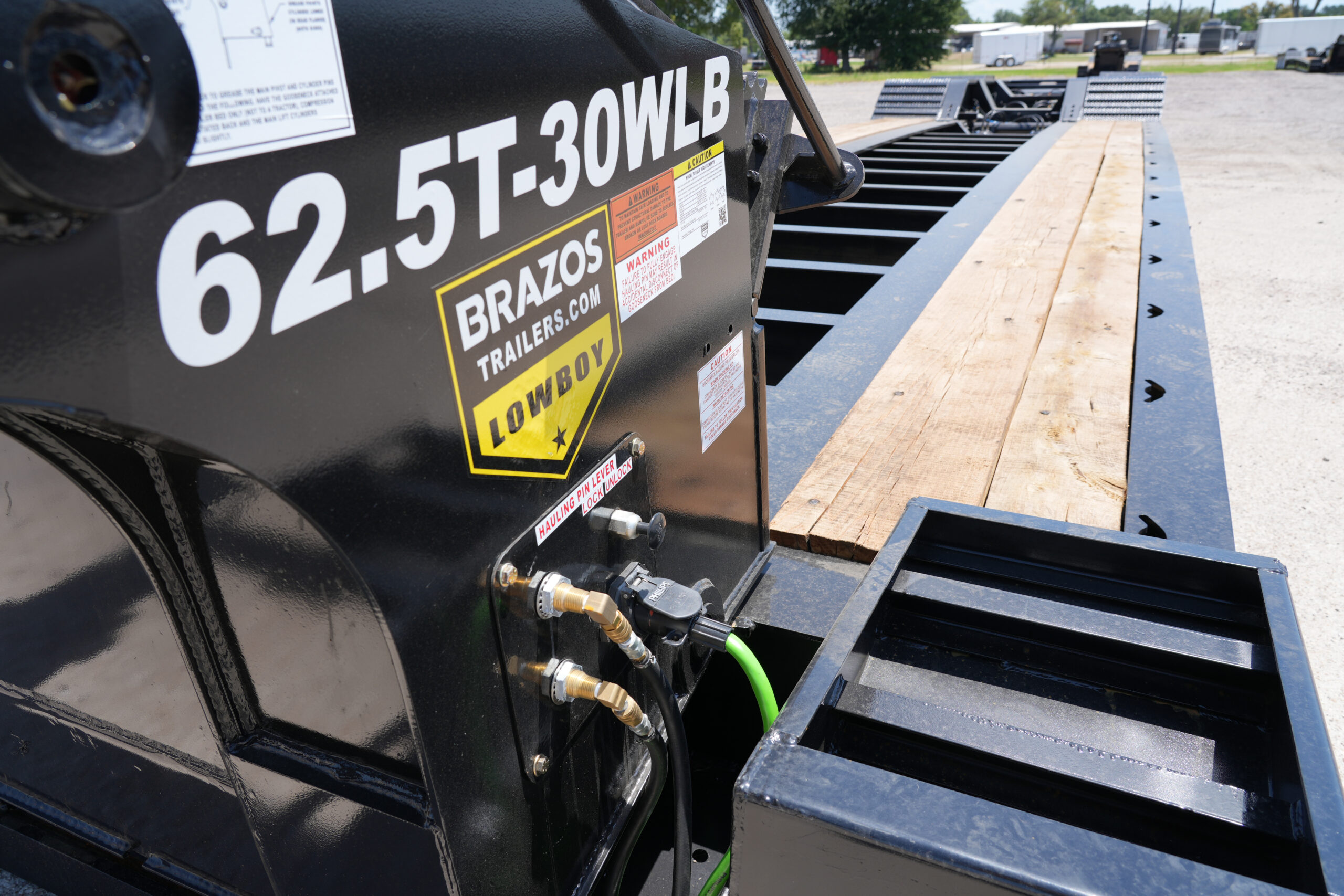

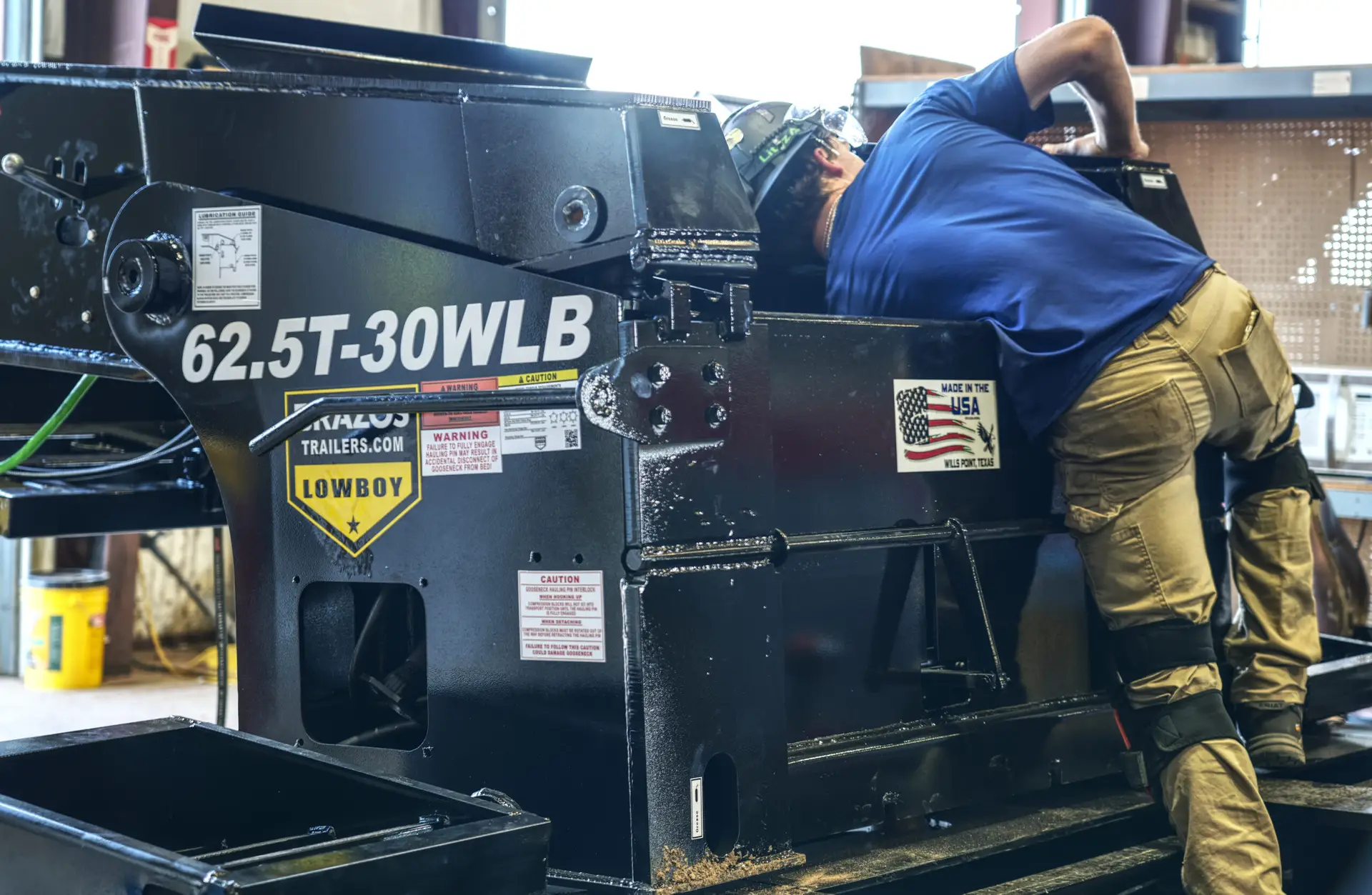

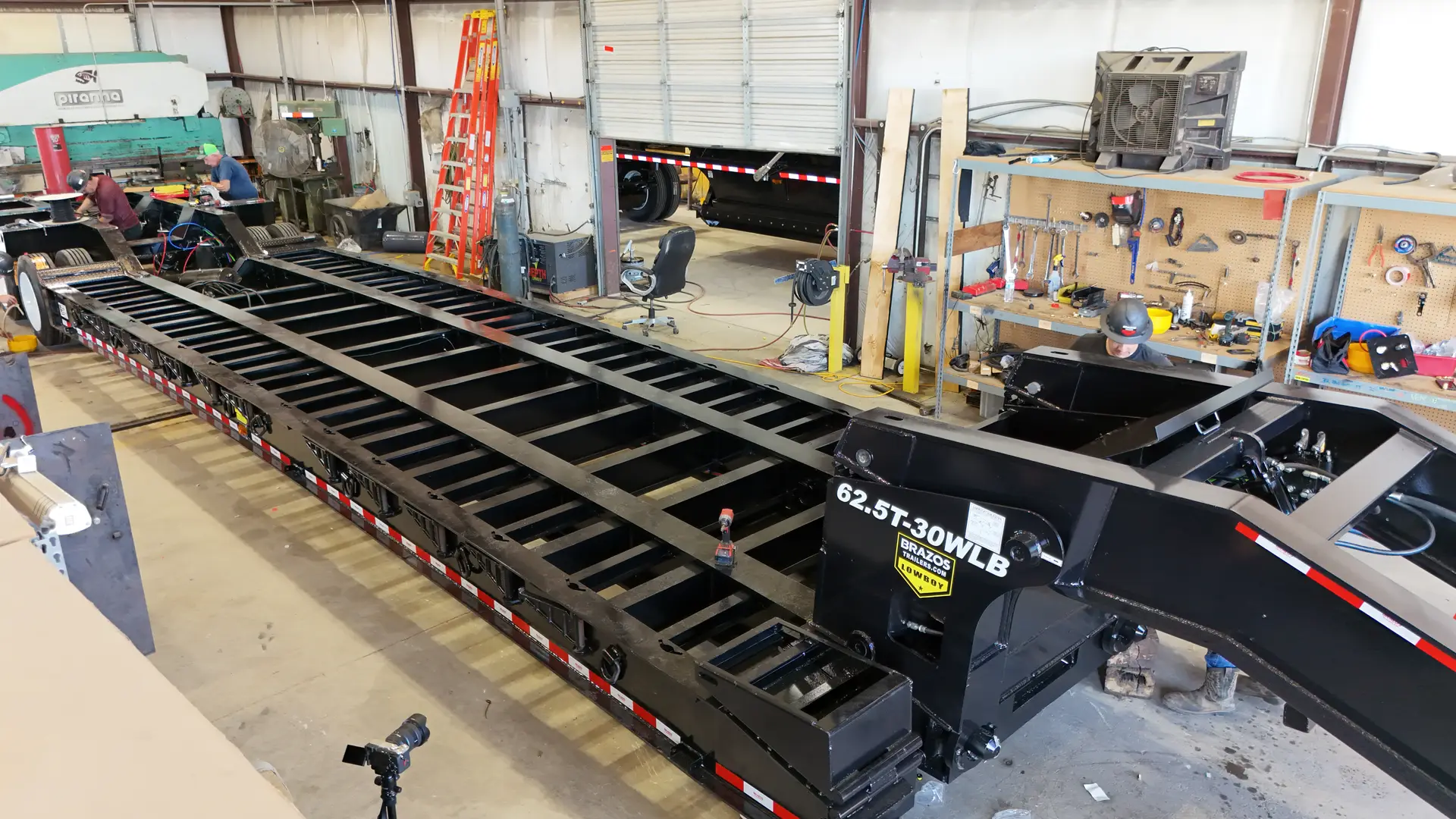

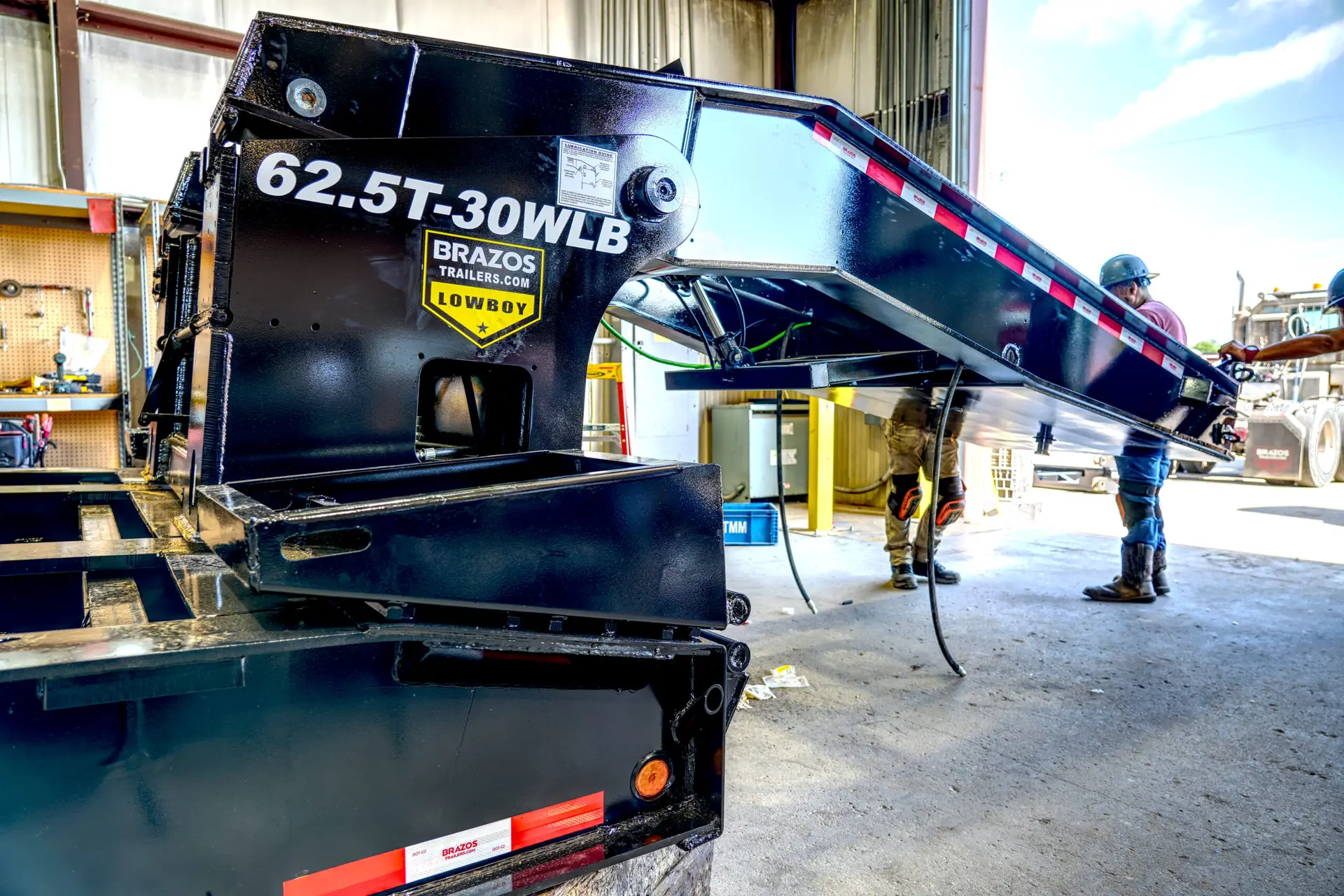

62.5 Ton Low Boy Trailer
Starting at $105,900
*Please note: Pictures shown may contain optional upgrades not included in base price. (stock photo)
Specifications
- Overall Length: 57’
- Overall Width: 108’’ (9’ Wide)
- Concentrated Load Rating: 120,000# in 16’

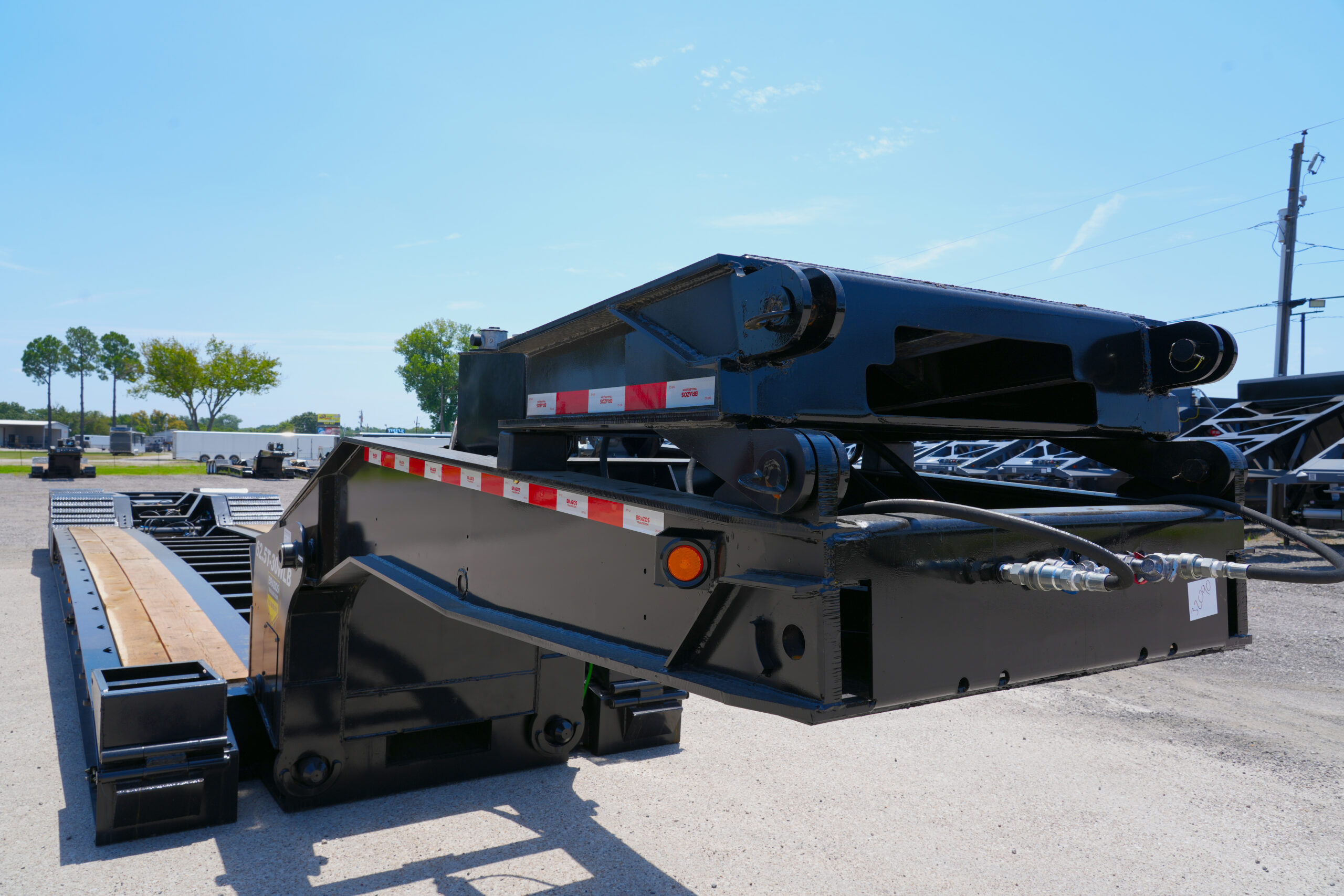

Gooseneck- - Length: 13’ low-profile scraper style neck
- King Pin Setting: 16” / 30”
- Swing Clearance: 96” / 110”
- Flip Neck: 36’’ Flip Neck Extension
- 5th Wheel Height: 51” w/ 5 variable ride height positions
- Hydraulics: Ran off wet line
Main Deck- - Length: 30’
- Loaded Deck Height: 25” w/ 7” of ground clearance
- Decking: 2 3/4” Rough Oak decking raised-center open
- Crossmembers: 10” & 4” stubbed Jr. I-Beam on 12” alternating centers
- Side Beams: 4 beams 16”
- D-Rings: 7 Bent D-Rings per side-14 total
- Outriggers: Removable H.D swing out outriggers -24” on center- H.D flat back front & center
- Chain Drops: 13 chain drops per side- outside beams
- Loading Ramps: 31” front flip ramps
- Bucket Well: At rear with plate on bottom-4 flat D-Rings
- Tool Box: In front of main deck with 4 flat D-rings
Rear Deck- - Length: 14’ with 32-degree rear transition
- Loaded Deck Height: 40”
- Axles: (3) 25,000# / 77.5” Tracking- Air lift on rear axle
- Suspension: Hendrickson 25,000# Air-Ride
*Add $1,500 to base price for Arizona location
Model Information
| Stock Number | |
| Year | 2026 |
| Manufacturer | Brazos |
| Model | 62.5 Ton Low Boy |
| Condition | New |
| Suspension | Air Ride |
| Well Length | 30 ft |
| Wheels | Steel |
| Number of Rear Axles | Tri |
| Axle Type | Fixed |
| Composition | Steel |
