Used Trailers

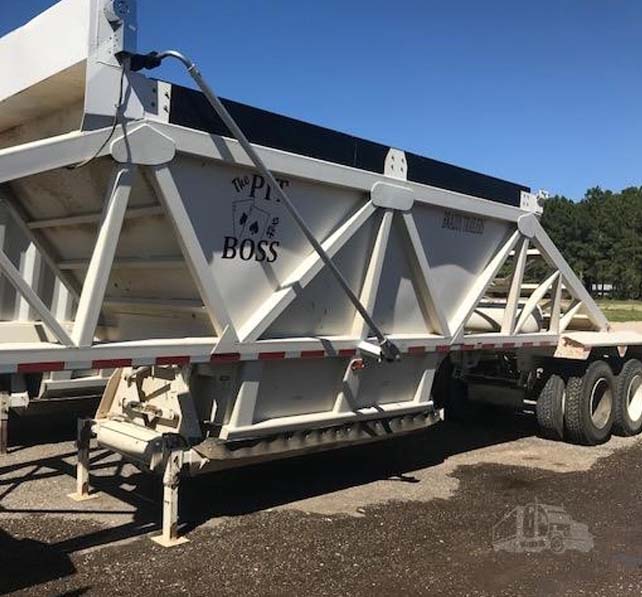

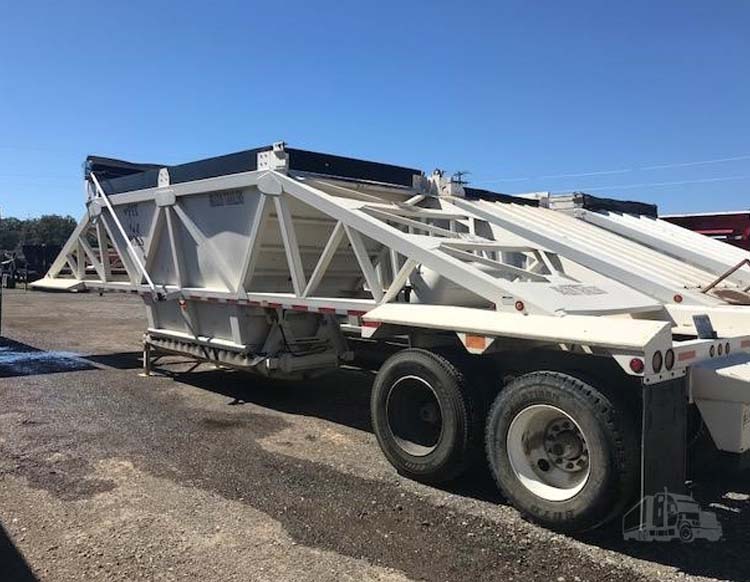

Used Brazos Pit Boss Belly Dump - 4
Stock Number 4179T
Year 2016
Manufacturer Brazos
Model Belly Dump Pit Boss
Condition Used
Suspension Spring
Frame Type Fixed
Wheels All Steel
Number of Rear Axles Tandem
Length 40 foot
Width 96 inch
Height 10 ft 6 in

2017 Wilson hopper bottom

Asking Price: $36,900
  • Length - 34'- 0" to 53' - 0" overall length(s).
  • Width - 8'-0" (95-3/4") overall width(s), 92" inside between skin. 8'-6" (101-3/4") overall width(s), 98" inside between skin available as extra cost option.
  • Height - 66" side height with 54" skin is 10' 6-1/2" (126-1/2") overall on 48-1/4" fifth wheel height and 10" rise ridge strap supports. Optional heights are: 72," 78," 84," 90", 96", 102", 108", and 114".
  • King Pin - 22" standard king pin setting.
  • Landing Gear - Two-speed, vertical, Holland Atlas 55, No-Lube. Located 92" from 22" king pin.
  • Front 5-5/8" radius corners with stainless steel front corner covers, pre-painted .050" aluminum front skin, single wall construction with extruded aluminum vertical Z-type posts, corner sections, lower front finish rail. Ladder assembly and short catwalk. Two grab handles on header.
  • Double wall construction; one-piece .050" pre-painted aluminum outside skin; extruded aluminum Z-type side posts; 66' & 72" high available with one-piece outside skin. All others vertically spliced panels. Inside skin one-piece from 66" to 84" side height. Drain port in rubrails between each side post.
  • Rear End - Single-wall construction. Rear skin is smooth, pre-painted white, with 5 extruded aluminum Z-posts. Two-piece extruded aluminum rear bumper. Ladder assembly and short catwalk. Stirrup step attached to bottom of the rear bumper. Two grab handles on header.
  • Binder Bars & Tarp Supports - 41' and 43' units have 7 permanent arched aluminum tube binder bars with all bows at 10" rise. Two nylon 1" wide straps, spaced on 22" centers at center of trailer, serve as tarp supports.
  • Lower Hoppers - Two structurally integrated lower two-piece hoppers with extruded aluminum corners and 39-1/4 degree slopes on the side, and 33-1/2 degree slopes on the front and rear are standard. Hoppers have extruded aluminum stiffeners; 2 stiffeners on the front and rear, and 2 stiffeners on the sides. Hoppers are divided equally by a hopper center divider.
  • Hopper Traps - Two aluminum RollerTrap assemblies have 27-1/8" wide x 31-1/4" long openings. Additional sizes available.
  • Traps Assembly Ground Clearance - The standard ground clearance of the trap assemblies is 17" on 11 x 24.5 tires. High ground clearance traps (21" distance) are available.
  • Trap Openers - Each trap is opened and closed manually through rollers and twin sets of flexible belts and removable crank on the driver's side.
  • Tarp - Roll tarp with aluminum caps is available as an extra cost option. Mud Flaps
  • Black rubber anti-spray type are standard.
  • Spare Tire Carrier - Cradle-type between hoppers. Optional at extra cost.
  • Lights - Internal Ground System: 12 volt I.C.C. lights with 7-way connector and wiring harness is standard. Two groups of three individual red LED STOP/TURN tail lights are factory sealed. Sealed LED clearance lights have rectangular polycarbonate (Grote Turtleback II) lenses. Flashable LED center marker light is standard.
  • Suspension H-9700 fabricated, under-mount, welded components with screw adjusted radius rods and 11,200 lb. rating two-leaf springs. Subframe: Steel longmembers and crossbars are standard; aluminum is optional. Haldex automatic slack adjusters are standard. SAF-Holland CBX air ride is optional. Other air ride suspensions are available.
  • Axles Two: 5" round with 20,000 lb. rating each with spring suspension. Air Ride suspensions supplied with large diameter axles. Tandem Setting: 49-1/4" from rear bumper to center between axles. Track Width: 71-1/2" on 96" wide; 77-1/2" on 102" wide.
  • Brakes 16-1/2" x 7" x 5/8" double anchor pin, air brakes. Less dust shields. EF non-asbestos brake linings. Wabco; 2 sensor, 1 modulator, ABS
  • Hubs Dura-light hub using MacLean-Fogg Axilok spindle nuts, with Stemco hub cap.
  • Drums Cast steel, outboard mount.
  • Wheels Eight 8.25 x 24.5 white steel disc. 10 hole hub-piloted wheels are standard.
  • Tires Eight 11-24.5 Bridgestone R-196.
  • Finish All steel components are treated with PRP black Corsol anti-corrosive to retard rust. Trap opener plated with yellow zinc dichromate. All aluminum components are left natural.

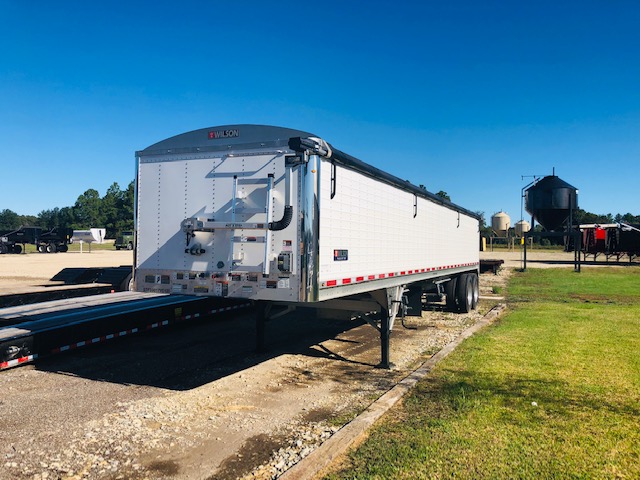

Year 2017
Manufacturer Wilson
Model Pacesetter
Condition Used
Suspension Spring
Frame Type Center Point
Wheels Aluminum
Axle Dual
Length 44'
Width 102''
Price $36,900
Location Wills Point TX

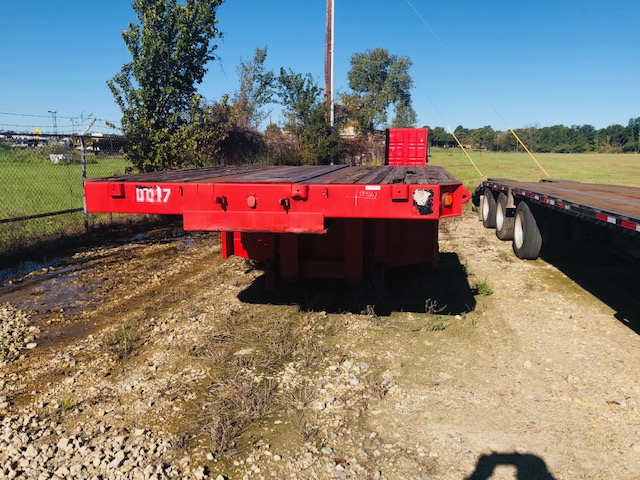

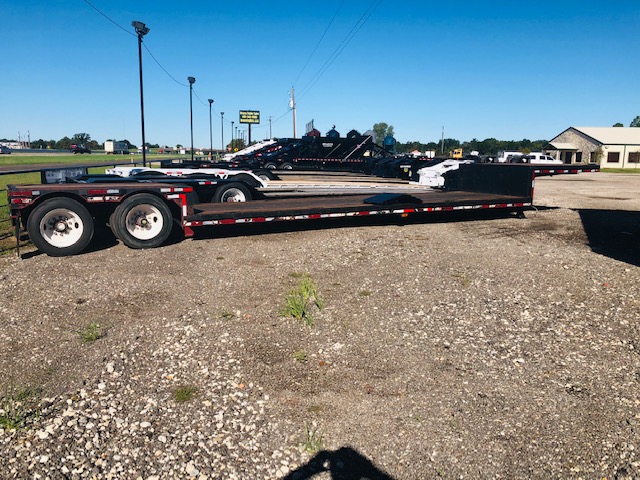

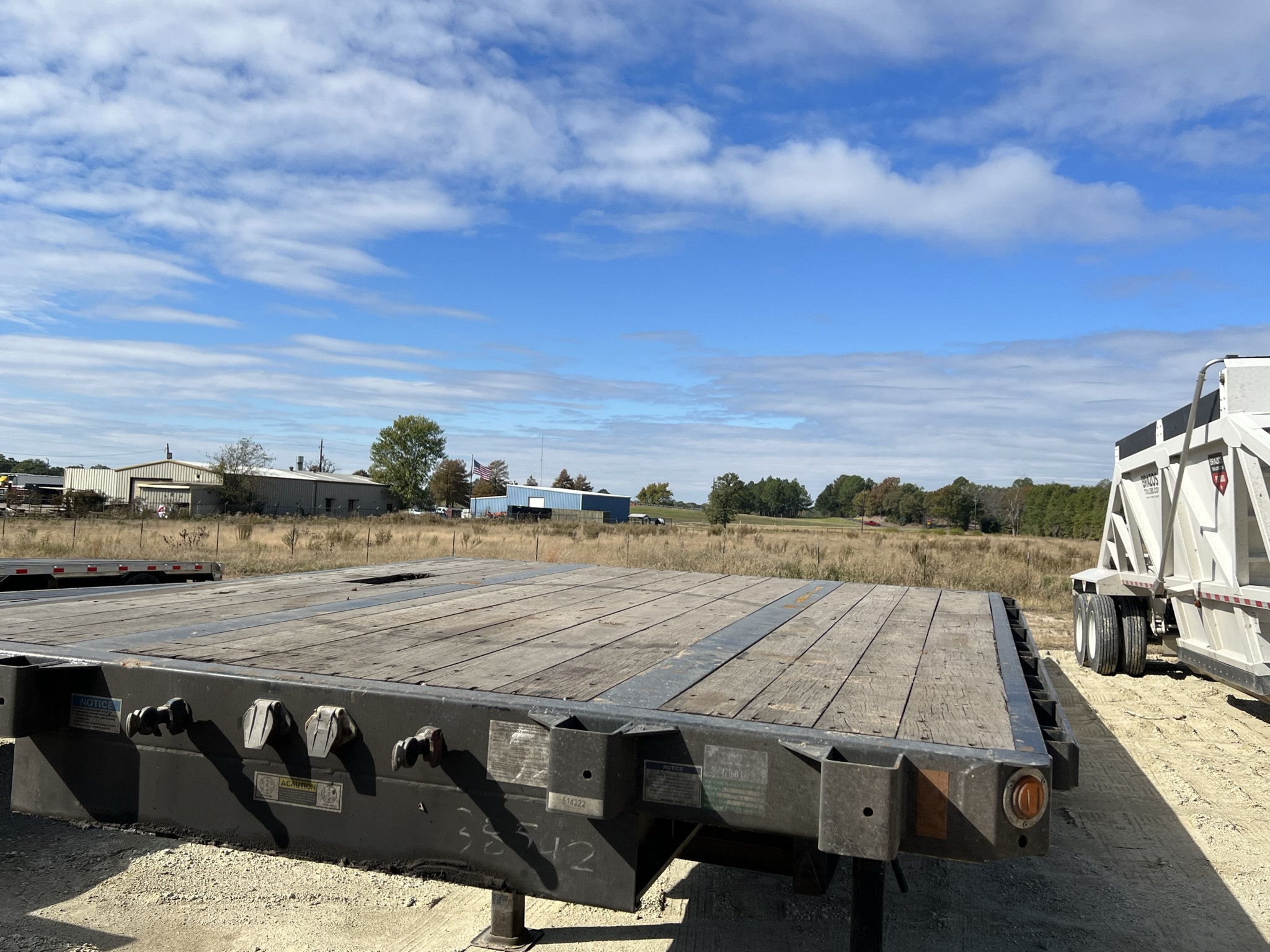

Used 1989 Stepdeck

Asking Price: $8000

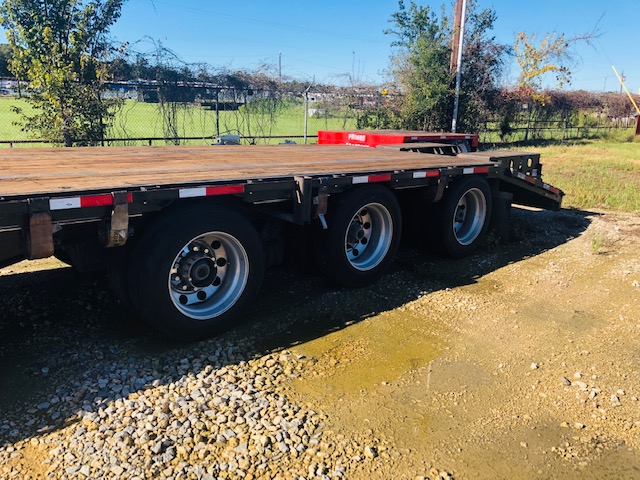

Used 2014 Transcraft 55 Ton

Asking Price: $33,000

Used 1992 Dorsey Stepdeck

Asking Price: $11,000

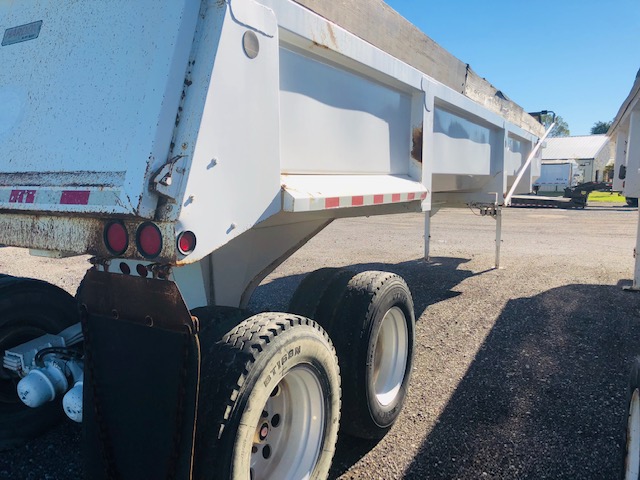

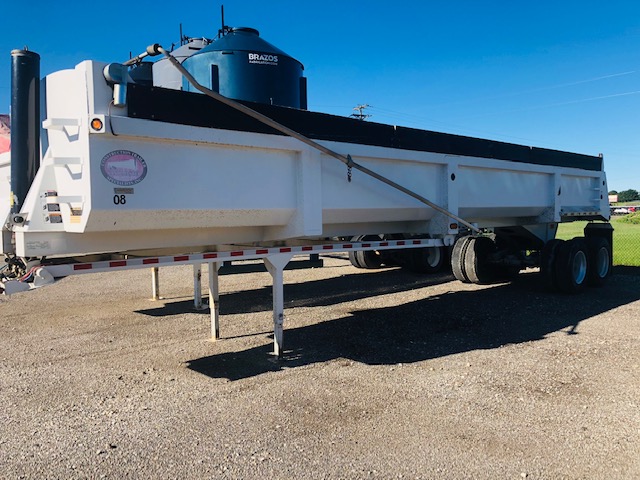

Used 1998 Lufkin Sandhauler

Asking Price: $9,000

Year 2013
Manufacturer CTS
Model Sand Master Light Weight
Condition Used
Suspension Spring
Frame Type Center Point
Wheels Aluminum
Axles Dual
Length 37'
Width 102"
Price $25,000
Location Wills Point TX





Brazos Trailers are built with proven, practical, efficient designs that are second to none.

Understanding the industry that a Brazos Trailer is built for gives us an advantage over the competition. Brazos Trailers are built with high-quality American made steel including the patented AR450 Wear Plate. Along with our high-quality components, you will also find our attention to detail right down to every weld.
